TEQ System

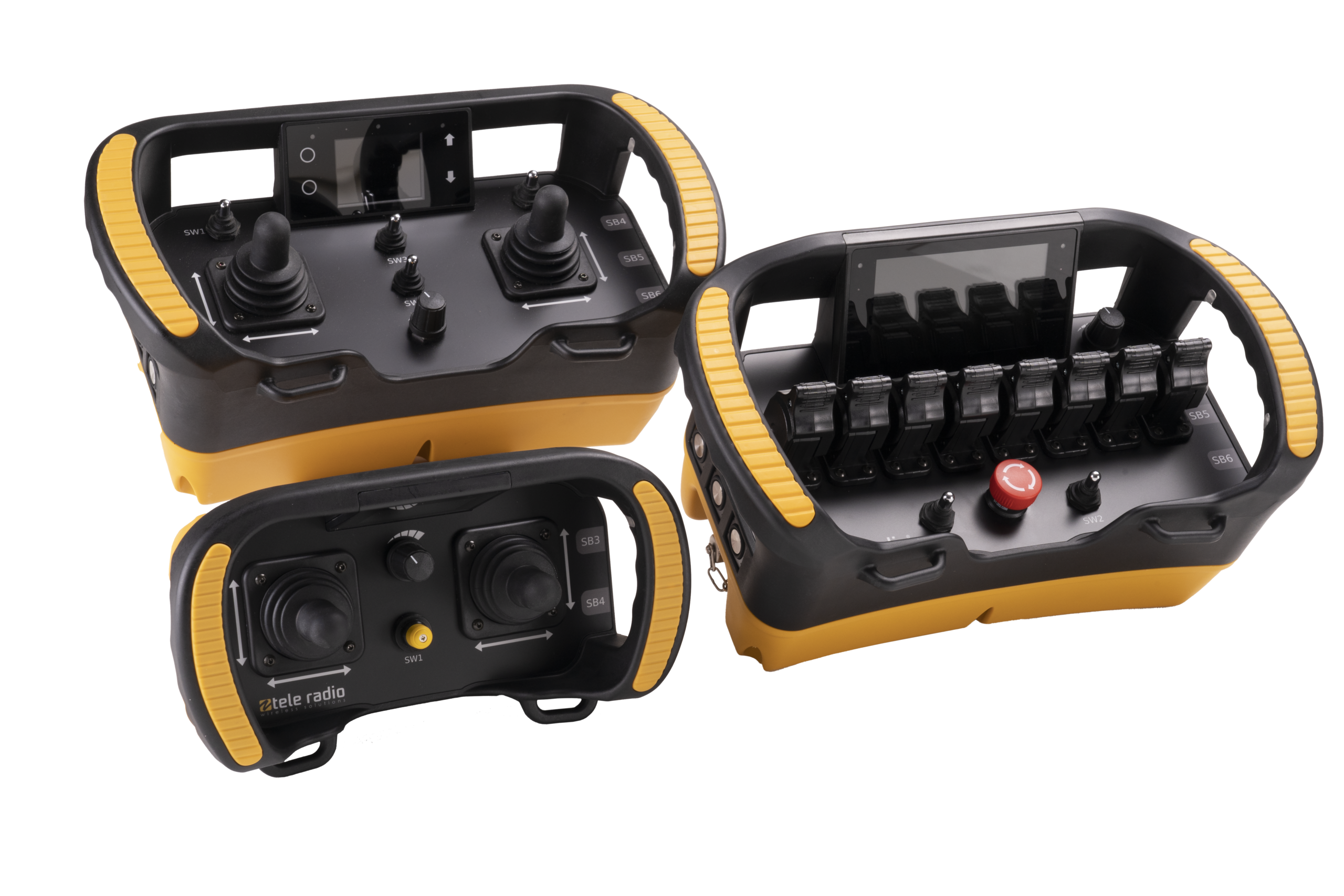

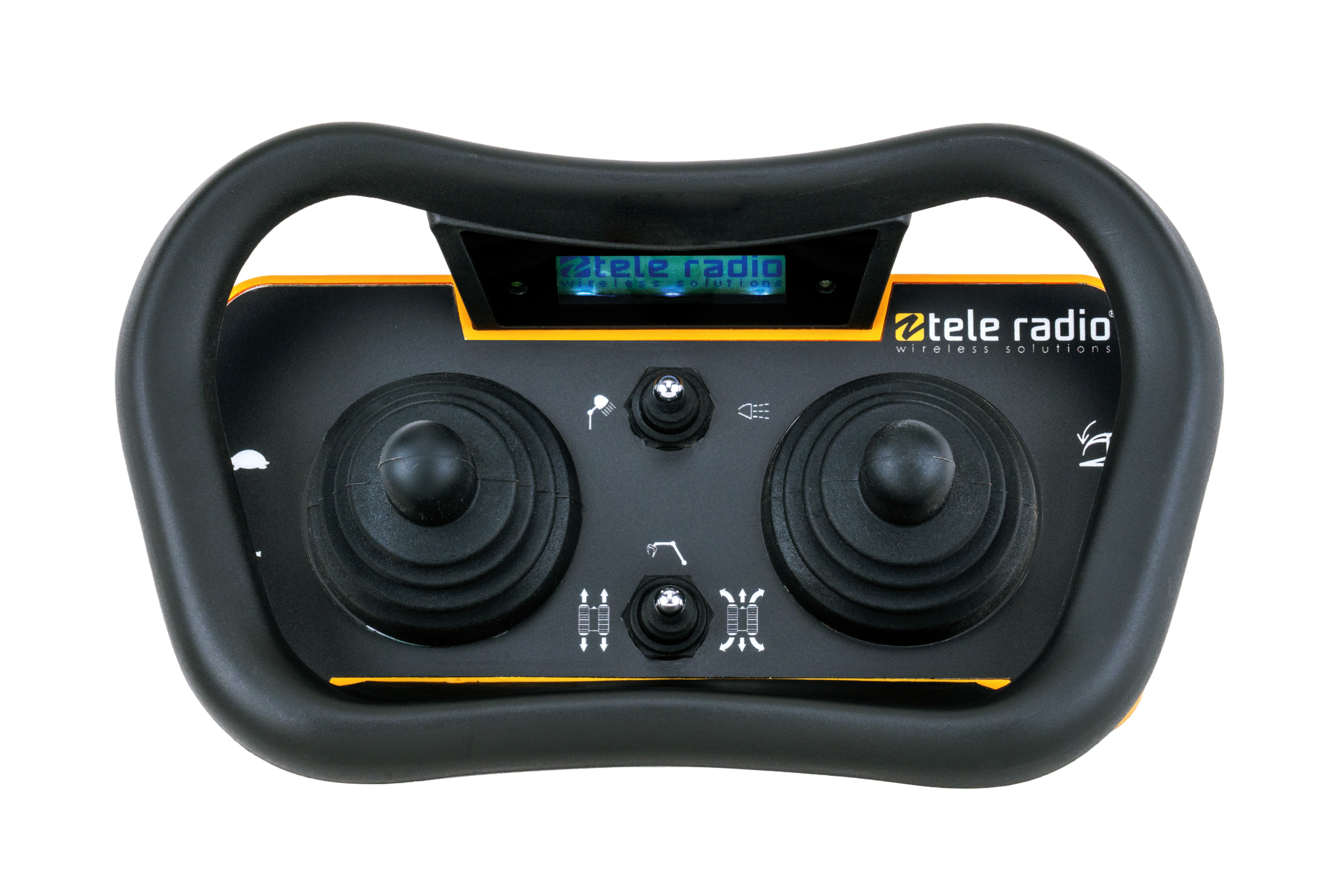

These systems are available for the most complex control solutions. They can be worn around the neck, shoulder or hip. Unlike our handheld transmitters, our industrial waist transmitters offer the possibility for two-handed operation. The large, sturdy handles vouch for a relaxed working position. This line is either available as the standard or fully customised.

Not the right fit?

Every application is different. Compare our transmitter and receiver options to find the configuration that best suits your machinery, functions and operating environment.

If none of our standard versions quite meets your requirements, explore our custom transmitter options and see how a system can be configured around the way you need to work.

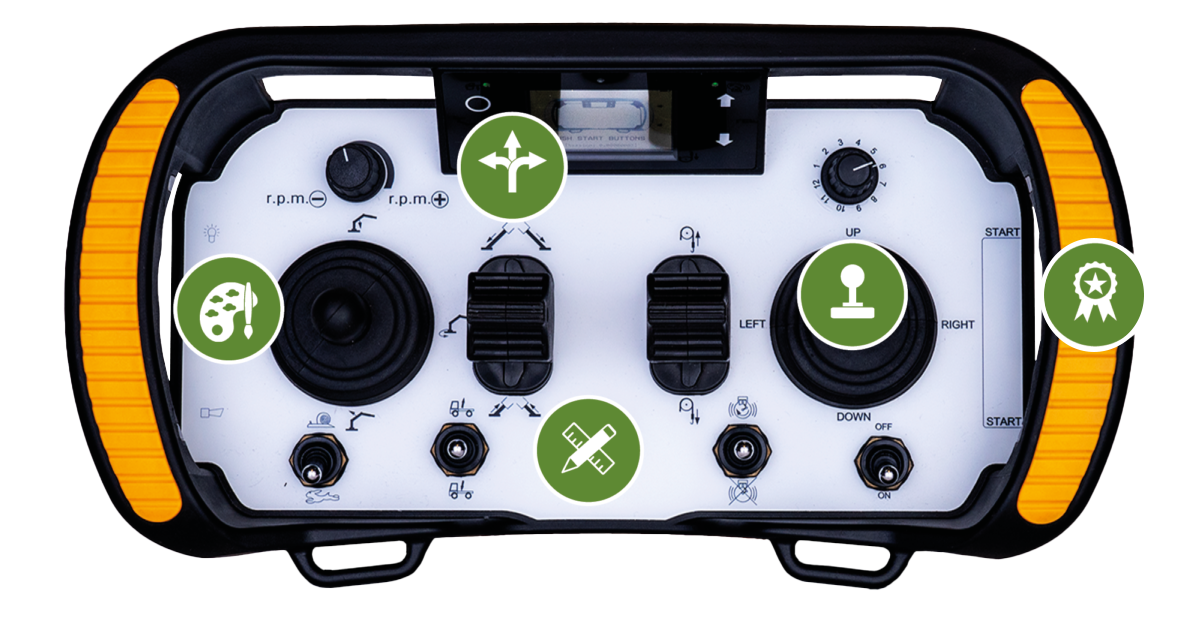

Because of the modular build of both the VersaTEQ and SupraTEQ, the flexibility of these products is extreme. You start with the choice of housing and then you can choose from a wide range of technical possibilities. These transmitters can be configured toyour exact specifications. All standard control elements imaginable are possible, down to the very last button, joystick or paddle. The faceplate can be customised with either full colour print or engraved, the choice is yours.

Flexible The Custom Line offers unprecedented possibilities in the field of software adjustments. In consultation with our sales team, you determine the desired functionality of the system, tailored to your wishes and the possibilities of the controlled machine.
Hardware adjustments In addition to the choice of a regular or large size housing for the transmitter, much of the hardware can be adapted to your own insight and need. Tele Radio waist transmitters are prepared for many special features.
Control elements We have a wide range of control elements to choose from. You can provide your transmitter with different types of joysticks with or without a button on the top, there are paddles, (push) switches with multiple positions, toggle switches, potentiometers, etc. The buttons can also be provided with special colors for intuitive operation.
Front plate You can process your own corporate identity on the front plate. With the correct indications and icons on the front plate you ensure a more efficient and safer use. The front plate can be printed or engraved. There is complete freedom with regard to the type of icons, logos, fonts, etc. The front plate, like the rest of the transmitter, is highly resistant to dirt, liquids, grease, etc.
Certification The reliability of the transmitter's safety stop is shown in various officially defined safety levels (SIL3, PLe,PLd etc.). Unique is the independent certification that Tele Radio achieved for these safety levels. The Custom Line can be provided with the desired safety level. This way the system can be used safely in all circumstances.

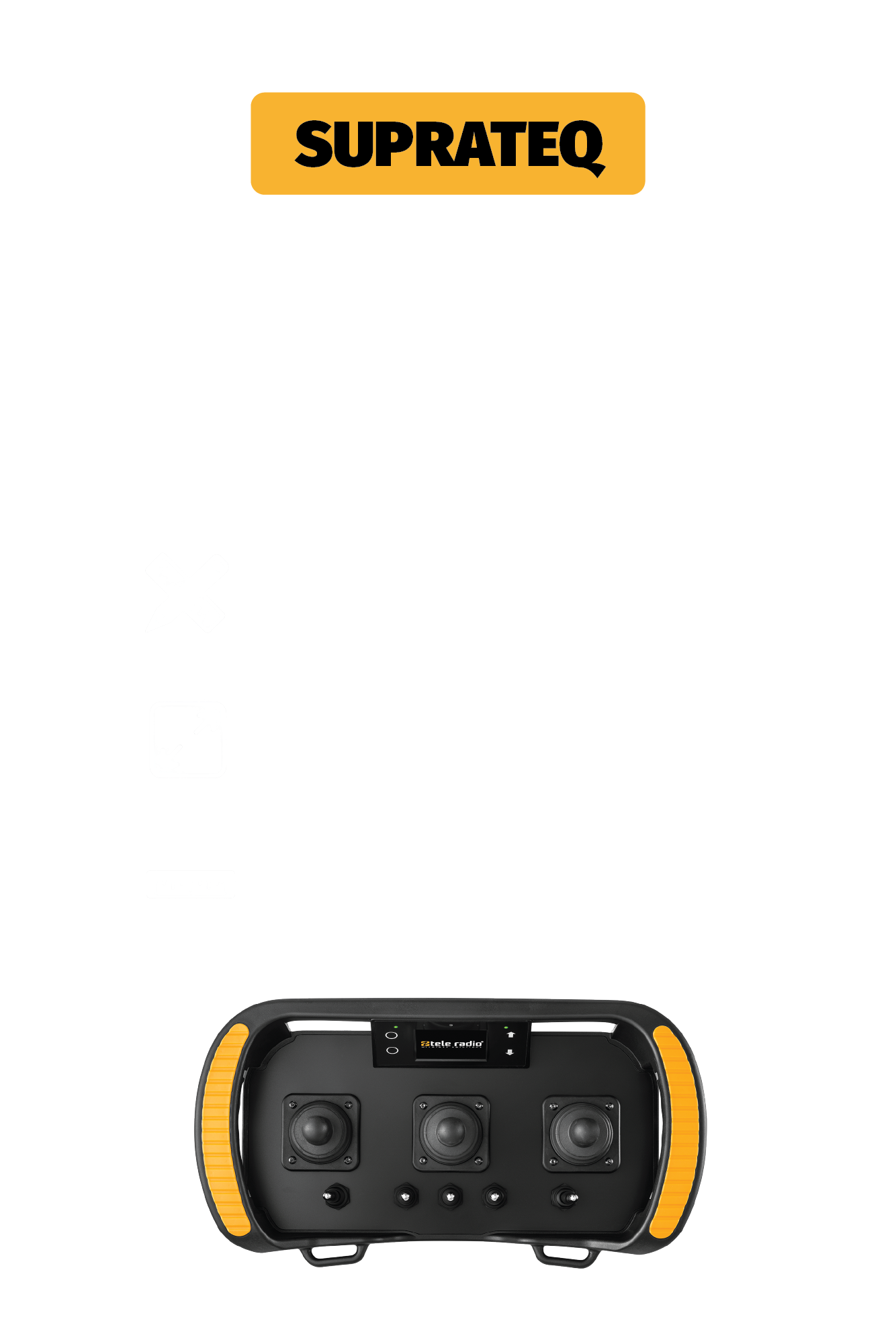

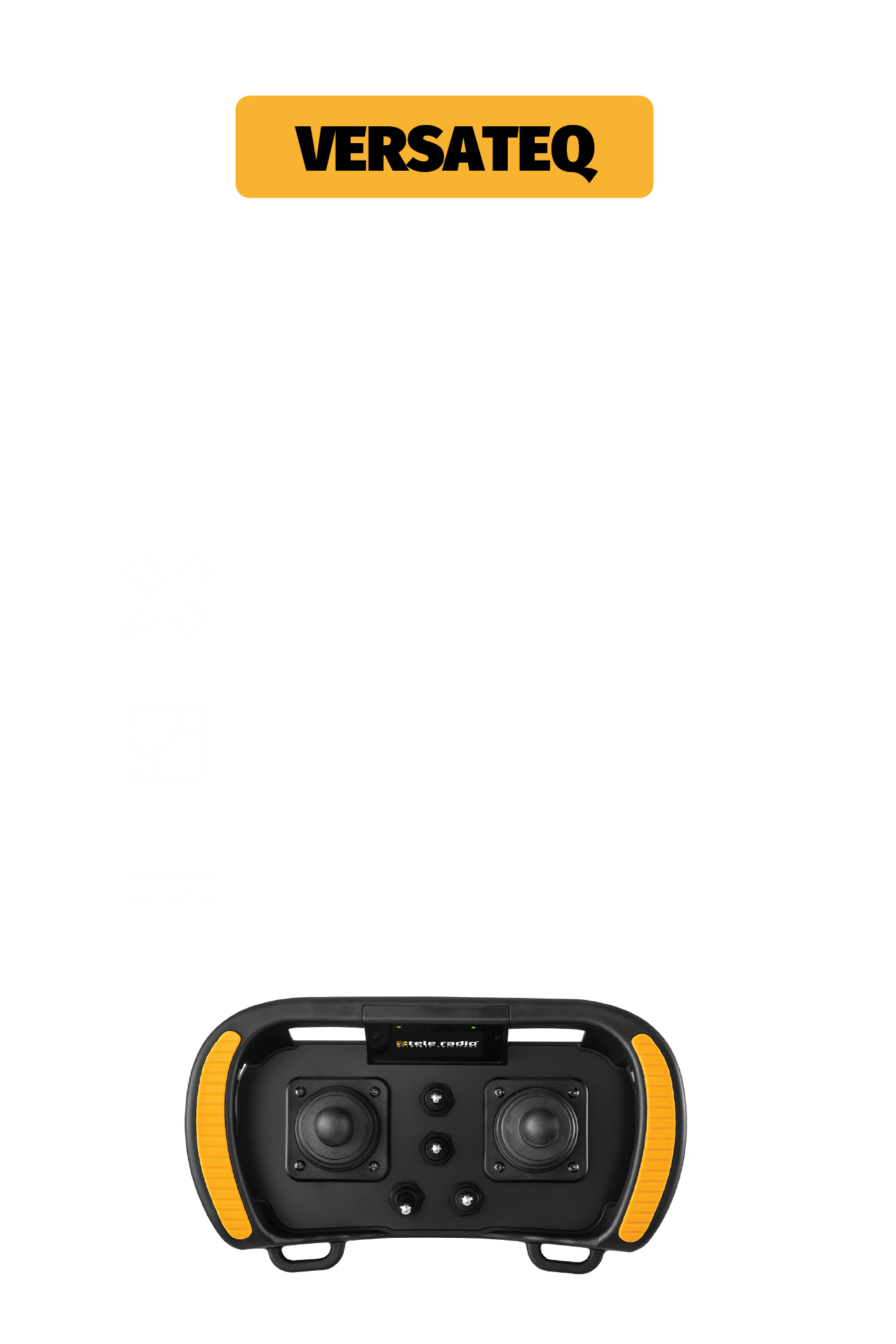

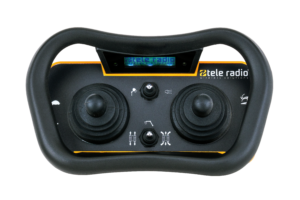

Name PrimaTEQ  VersaTEQ VersaTEQ SupraTEQ

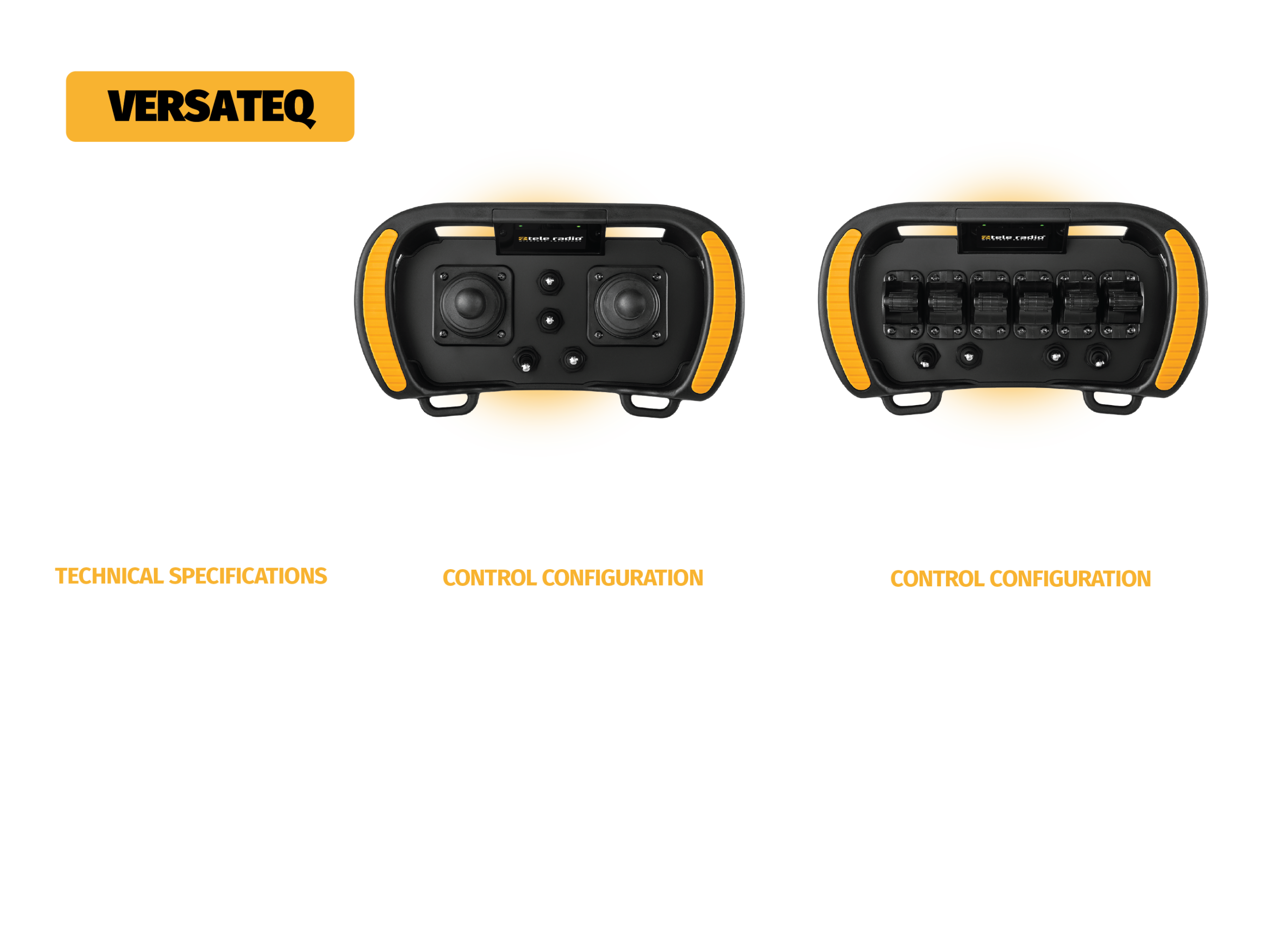

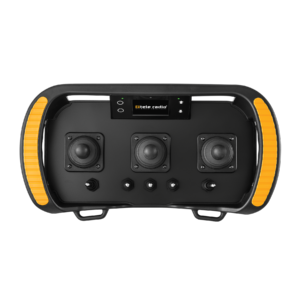

Product code T12-25 T26-TS02 T26-TS03 T24-TS01
Buttons 2x analog joysticks XY redundant proportional 2x proportional XY joystciks 6x proportional blades 3x proportional XY joysticks
Screen LCD 45,3 x 14,6 mm 2" full colour screen 2" full colour screen 2" full colour screen with buttons
Frequency 433 MHz 69 channels 2.4 GHz 16 channels 2.4 GHz 16 channels 2.4 GHz 16 channels
Batteries 1x Lithium battery rechargeable and interchangeable 1x Lithium battery rechargeable and interchangeable 1x Lithium battery rechargeable and interchangeable 2x Lithium batteries rechargeable and interchangeable
Protection IP65 IP65 IP65 IP65
Certifications CE, G Lloyd CE, FCC, IC CE, FCC, IC CE, FCC, IC
Temperature -20°C to 55°C -20°C to 55°C -20°C to 55°C -20°C to 55°C
Security level SIL3, PLe SIL3, CAT3, PLe SIL3, CAT3, PLe SIL3, CAT3, PLe
Dimension w210 x h140 x d130 mm w241 x h136 x d124 mm w241 x h136 x d124 mm w330 x h147 x d179 mm
Datasheets T12-25 Datasheet T26-TS02 Datasheet T26-TS03 Datasheet T24-TS01 Datasheet

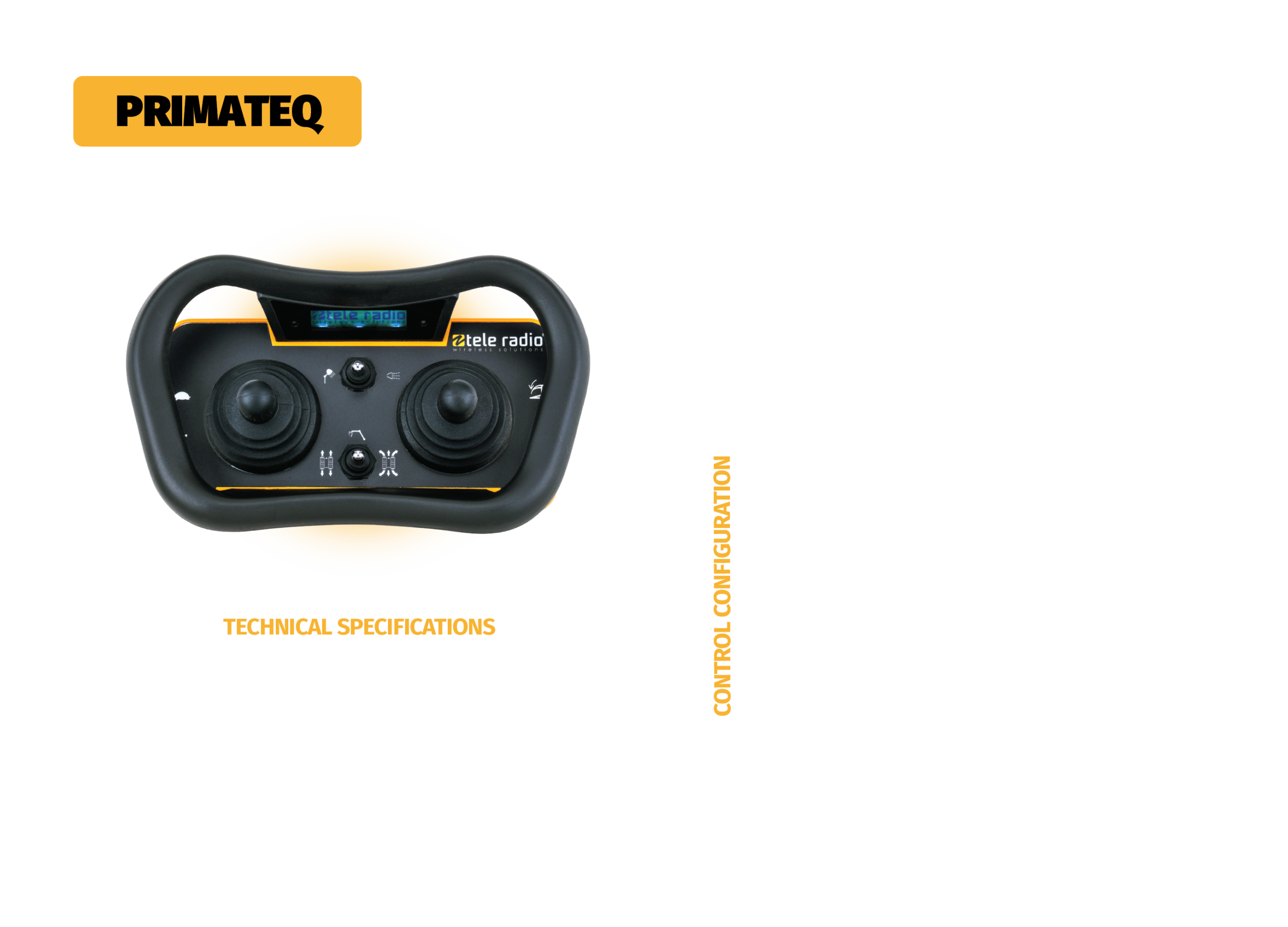

*In this chart we only added the most popular PrimaTEQ remote. Datasheets for T12-20, T12-30, T12-21, T12-31, T12-22, T12-23, T12-33, T12-24 and T12-35 here.

Receivers for PrimaTEQ transmitters



Name R4 R9 R10
Frequency 433 MHz 69 channels 433 MHz 69 channels 433 MHz 69 channels
Relays 7 (R4-01), 17 (R4-06), 11 (R4-36), 7 (R4-26), 7(R4-41) 12 (R9-1, R9-6) 28 (R9-11) 7
Weight 800gr (R4-01, R4-26), 950gr (R4-06) 1800gr 650gr
Antenna 1 BNC connector for external antenna 2 BNC or 2RP-SMA connector for external antenna 10 pin connector, internal antenna
Protection IP66 IP66 IP65
Dimensions w176 x h160 x d75 mm (R4-01, R4-06), w176 x h126 x d52 mm (R4-36, R4-26, R4-41) w256 x h175 x d85 mm w152 x h139 x d58
Temperature -20 °C to 55°C -20 °C to 55°C -20 °C to 55°C
Certification CE CE CE
Datasheets R4-01, R4-03, R4-06, R4-08, R4-26, R4-28, R4-36, R4-38, R4-41 & R4-43 R9-01, R9-02, R9-06, R9-07, R9-11 & R9-12 R10-01 & R10-02

Receivers for VersaTEQ & SupraTEQ



Name R30 R20-RS01 R21-RS02
Frequency 2,4 GHz 16 channels 2,4 GHz 16 channels 2,4 GHz 16 channels
Power supply 12-24VDC & 24-48VAC (R30-21, R30-26, R20-22 & R30-27) 110-230VAC (R30-71, R30-76, R30-72 & R30-77) 12-24V DC 12-24V DC
Weight 300gr (R30-21, R30-26, R30-22, R30-27, R30-71, R30-76), 400gr (R30-72 & R30-77) 800gr 400gr
Antenna Internal & external optional
Protection IP66 IP66 IP66
Dimensions w120 x h116 x d51 mm w209 x h147 x d71 w120 x h117 x d51
Temperature -20 °C to 55°C -20 °C to 55°C -20 °C to 55°C
Certification CE, FCC, IC CE, FCC, IC
Datasheets R30-21, R30-26, R30-22, R30-27, R30-71, R30-76, R30-72, R30-77 R20-RS01 R21-RS02
